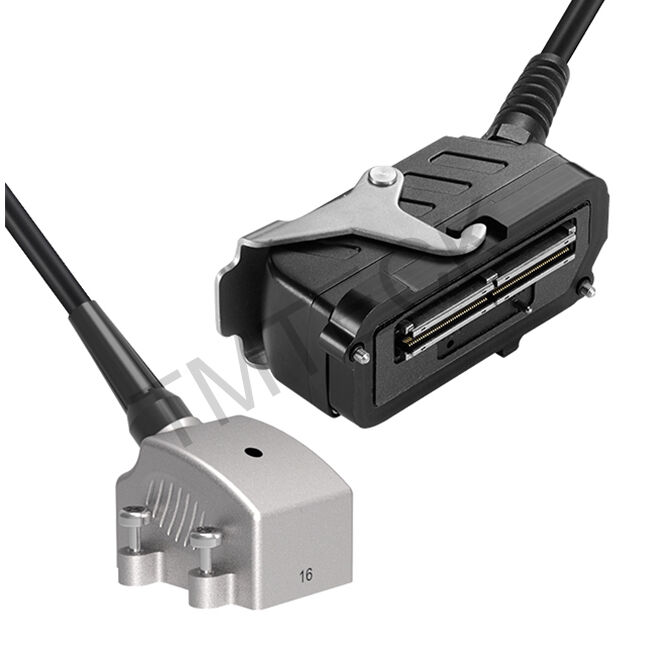

Thick Plate Material And Weld Ts22 Deep Penetrating Probes

Deep Penetrating Probes:Low frequency with strong sound penetration,suitable for detecting thick parts

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Weld penetration deep penetration series.

3.Acoustically matched to Rexolite for most angle beam.

Application

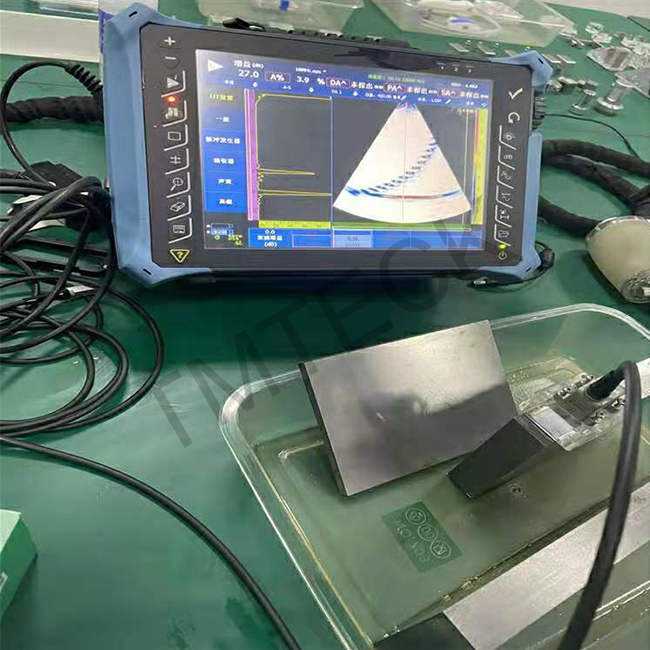

1.Thick plate material and weld

2.Forgings, noise or granular materials

3.Moderate constitution and large monitoring range

Probe Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Wedge Specification

Quick Details

Model Number:5L16-1.6x16-TS22/5L16-25.6x16-A3

Element:16

Element Shape:Linear

Size:LxWxH36x36x25(mm)1.41x1.41x0.98(in)

Warranty:12 Months

Case:Stainless steel

Application:Thick plate material and weld

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
