TMP-10S/TMP-20S
(Multi-point pressure & center pressure) fully automatic metallographic grinding and polishing machine
I.Product Introduction
TMP-10S/TMP-20S fully automatic metallographic grinding and polishing machine simultaneously supports:
- Multiple samples are loaded independently
- Load at the center of the sample tray
Six samples can be clamped at once, and a four-channel automatic dropper (optional) can be configured to fully automate the grinding and polishing process.

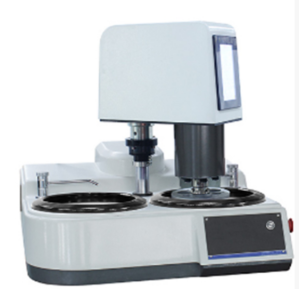

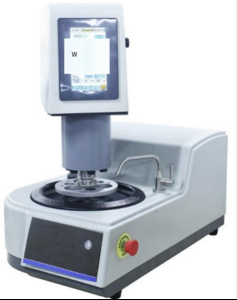

Single disc Double discs
II.Product Features
1.TMP-10S/TMP-20S fully automatic single and double disc metallographic grinding and polishing machine, supporting:
- Loading multiple samples independently
Sample tray center loading, fixing six (customizable up to 8 samples) samples at a time to complete the entire grinding and polishing process, ensuring that each sample is ground out on a complete plane
2.Grinding and polishing discs and sample discs: Set and run all grinding and polishing parameters such as speed, grinding and polishing time, rotation direction, water valve closure, etc., and automatically save for easy access;
3.PLC + 1KW high-power motor
4.Two separate 1KW high-power motors (TMP-10S is a single motor) are used for torque, and the torque is large and constant regardless of speed;
5.The speed range is wide, from 5 revolutions per minute to 1000 revolutions per minute (maximum 1500 revolutions per minute).
6.Quick start and stop of the turntable, the turntable stops rotating in 2 seconds;
7.All grinding and polishing parameters, including speed, grinding and polishing time, rotation direction, water valve closure, etc., are automatically saved for easy access;
8.Imported PLC brand, reliable quality;
9.Touchscreen interface for easy setting of grinding and polishing parameters;
10.3 Working modes:
According to the sample material or user preference, 99 sets of processes (processes) can be set and invoked, each set of processes can contain 10 steps of process parameters (each process for a certain step of grinding or polishing process parameters: rotation speed of grinding discs and grinding heads, grinding and polishing time...)
According to each step of grinding and polishing process, 30 process parameters can be set and invoked: grinding wheel and grinding head rotation speed, grinding and polishing time, water on/off...
Operate a function of the device separately
TMP-10S Auto interface TMP-20S Multi-process interface TMP-20S Manual interface
11. Store 100 processes, import and export;
12. Sample grinding layer thickness control: Precisely control the amount of sample to be ground to the designated position (optional);
13.Built-in 1 or 4 or 6 channel automatic dropper (optional):
1) The main unit of the grinding and polishing machine controls the four-channel dripper. The type and speed of drips are all instructed by the grinding and polishing machine
2) The dripper has three working modes: manual, online, and fully automatic
3) Connect to the polishing machine and drip according to the grinding and polishing parameters set by the grinding and polishing machine; Each mode can be set independently: drip speed, drip time
14. The grinding head electromagnetic automatic locking replaces the manual grinding head locking wrench, which is more convenient;
15. With the easy replacement of the magnetic anti-sticking plate, all processes such as rough and fine grinding and rough and fine polishing of various samples can be completed, one plate is equivalent to N plates;
16. Switch between Chinese and English interfaces;
17. Mobile remote control operation (optional).
III.Technical Parameters
| Name |
Specifications |
| Model |
TMP-10S |
TMP-20S |
| Grinding and polishing discs |
1 |
2 |
| Main motor for grinding and polishing discs |
1KW |
1KW * 2 |
| Control mode |
Touchscreen +PLC |
| Pressurized mode |
Pneumatic multi-point pressurization (pressurizing each sample separately) + electric center pressurization |
| Grinding and polishing disc diameter (mm) |
φ254 (optional φ200, φ230, φ300) |
| Grinding and polishing disc speed |
5-1000 (r/min) Optional 1500 (r/min) |
| The direction of rotation of the grinding and polishing disc |
Either counterclockwise or clockwise, with automatic switching between forward and reverse |
| Sample plate diameter |
160mm, customizable |
| Sample tray sample aperture |
φ30mm six-hole (optional: φ30mm eight-hole, φ30mm six-hole, φ20 six-hole, φ40 six-hole, φ50mm three-hole, or customized) |
| Center pressure |
300N |
| Single sample pressure |
(1-40N) X 6, (1-60N) X 8 (optional) |
| Sample disk speed |
30-200 revolutions per minute. Rotation can be switched between forward and reverse |
| Manual mode |
30 groups of parameters can be selected, each set and invoked separately |
| Auto Mode |
99 sets of processes, each set of processes containing 10 steps of process parameters (automatically from process 1 to process 10, each step corresponding to a set of parameters) |
| User programming |
Users can self-program and invoke |
| Sample grinding thickness control |
Thickness control accuracy 0.05 mm (optional) |
| Air source pressure |
0.6 MPa |
| Grinding head locking method |
Electromagnetic automatic |
| Dropper |
1 channel, 4 channels, 6 channels (optional) controlled by the grinding and polishing machine |
| Power supply |
Voltage: AC220V; Frequency: 50HZ; Power: 2KW |
| External dimensions (mm) |
760 x 470 x 700 |
760 x 730 x 700 |
| Weight |
63kg |
74kg |
IV.Main Accessories
| Name |
Quantity
(Single disc/Double disc
|
Name |
Quantity
(Single disc/Double disc)
|
| Magnetic disk (254mm) |
1 /2 |
Anti-sticking plate |
2 |
| With adhesive backing sandpaper 254mm(or 250mm) 180#, 600#, 1000# |
2 sheets each |
Polishing cloth (with glue, 250mm)
Velvet, canvas
|
1 piece each |
|
Diamond suspension grinding and polishing liquid
1 micron, 6 microns 200 ml
|
1 bottle each |
Anti-sticking plate prying tool (for placing and prying up anti-sticking plates) |
1 |
| Product instruction manual, product certificate of conformity |
2 copies in total |
|
|
V.Options
1. The grinding allowance control fixture rotates one division by 0.02mm
2. Four-channel automatic dripper
3 Mobile remote control operation module
4.Air pump
5.Huawei Tablet M6 10.8-inch Kirin 980 4GB+64GB WiFi
6.Common consumables:
| MAGNOMET |
Anti-sticking tray 5 pieces per box diameter: Φ250mm
The surface is coated with a special anti-stick coating, which can be easily replaceable with adhesive sandpaper or polishing cloth attached to the tray, leaving no residue. It can be reused.
The disk is used directly on BUEHLER or STRUERS magnetic disks;
Replace BUEHLER's MagnoMet and MagnoPad
|
| GSC250A |
Metallographic sandpaper 100 pieces per pack
Abrasive: Black silicon carbide
Grit numbers: P80# 120# 180 # 320 # 600 # 800 # 1000 # 1200 # 1500 # 2000 #
Size: Φ250mm water-resistant
With adhesive back, the sandpaper can be directly attached to the grinding disc
|
| FT250A |
Metallographic polishing fabric 10 pieces per pack
Velvet (long pile)/canvas (short pile)/tweed (short pile)/silk (no pile) Φ250mm
Pasted back: The fabric can be directly attached to the grinding plate
|
| DSU |
Diamond suspension grinding and polishing liquid 500ml per bottle
The diamond is suspended in the liquid and evenly distributed by a spray bottle or automatic drip
Particle size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 microns, suitable for all kinds of materials
|
